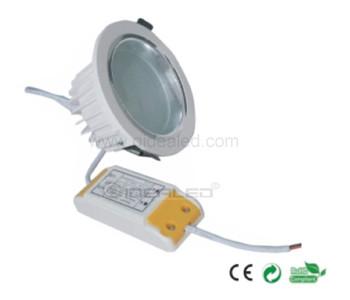

7W Down lights 2.5inch Recessed LED Light Fixtures
 | Item.No: | GD-DL90W7 |
| Input Power: | 7w |
| Input Volt: | 90-265V AC |
| PF | >0.95 |
| Luminous Flux: | 560-580 lm |
| CRI: | 85 Ra |
| LED type: | high power EPISTAR LED |
| Housing | die-casting aluminum |

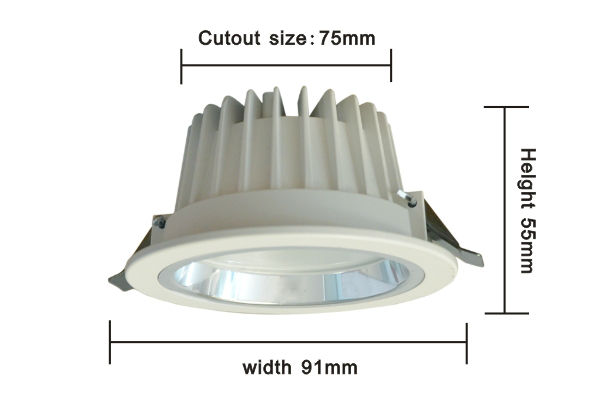

| Size: | φ90mm*H55mm |
| Cut-out : | Φ75mm |
| Dimmable or Non-dimmable for option |
characteristic:
1. The downlights of Gidealed is made of high quality metal, the surface uses environmental

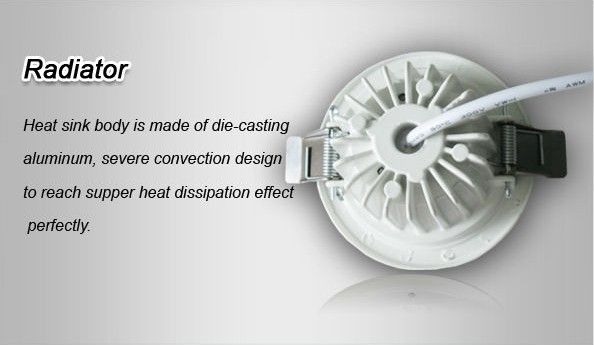

powder paint process .The overall structure is simple and light. The reasonable design for heat dissipation can ensure safety for worki ng environment and extend LED lifespan.
2. This product adopts super bright High power LED, and low voltage constant current driver, to ensure its safety, reliability, energy-saving an d long lifespan. It can be matched with triac dimmer driver to realize the dimmable function.
3. No ultraviolet or infrared radiation, no mercury, lead or other heavy metals. LED lamps
are the best choice for green and environmental-protection.
4. Lower power consumption. Contrasting to traditional lamps, LED lamps can save
energy of 60%-80%.
5. Long lifespan: more than 50,000 hours.
6. Serialized design gives you more choices.
7. For providing satisfying service, please operate according to instructions in the process of installation and replacement.
8. Guarantee period:2years

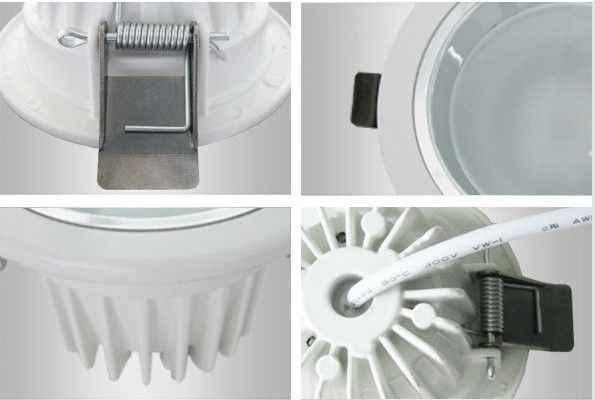

Detail Show:
Application and Installation:
This product can be used in ceiling installation directly. Do not exceed the specified power
supply range (AC100-240V ± 5%). Please be installed in strict accordance with the instructions. Improper installation can lead to falls, electric shock, damage and other accidents, the specific steps are as follows:

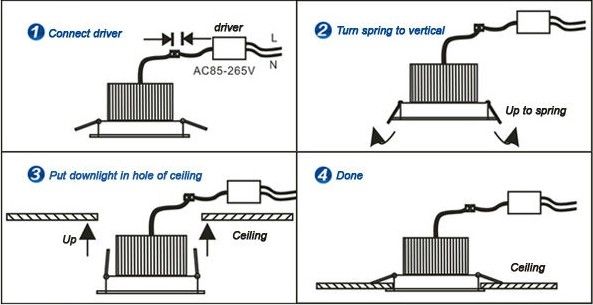

Step 1
Select install locations, make sure the substance of the install locations, make sure
10mm deep of the ceiling.
Step 2
Ensure the line is power-off to prevent el ectric shock before installation. Cut out
diameter 75mm, and lead out the pos itive and negative of the wire.
Step 3
Use a screwdriver to link the marked positive and negative charges to the connecting
terminals. Turn the power switch on, if the swit ch can control the lights, the wiring is correct, otherwise check the wiring until the light can be controlled. then , put the whole light into the hole as follow.
Step 4
Keep the warranty card and other attached accessories after the installation

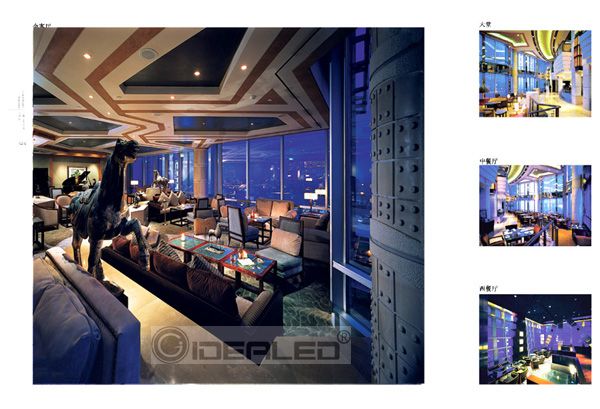

Application:
|
|
7W Down lights 2.5inch Recessed LED Light Fixtures Images
|
